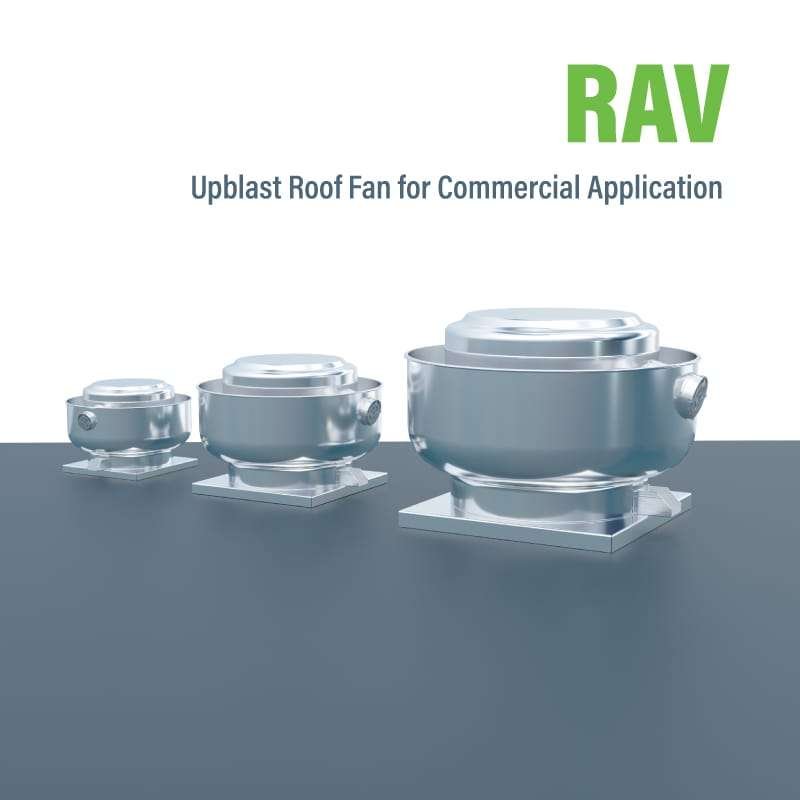

RAV

Upblast Roof Fan for Commercial Application

Best suited for kitchen grease and roof exhaust

Suitable for industrial commercial application
Weatherproof construction
Complete spun aluminium construction

Introducing the RAV series Upblast Roof Fan, meticulously engineered for superior performance in commercial applications. Designed with precision and durability in mind, this aerodynamically friendly belt-driven fan is a reliable solution for a wide range of ventilation needs.

Upblast Roof Fan, Commercial Ventilation, Kitchen Exhaust Fan, Roof Exhaust System, Belt Driven Fan, Commercial Applications, High Volume Flow Rate, Aluminum Alloy Impeller, Weatherproof Construction, Industrial Ventilation, Grease Trap, Roof Mounted Fan, AMCA Standards, Statically Balanced Impeller
  • Design: Aerodynamic-friendly belt-driven roof-mounted fan.
  • Temperature Rating: S1 rating up to 80⁰C, with a maximum working environment temperature of 320ºF.
  • Performance: Compliant with AMCA 210 & 300 standards.
  • Best Suited for: Kitchen grease and roof exhaust applications.
  • Construction: Complete spun aluminum construction ensures durability and longevity.
  • Weatherproof: Built to withstand harsh environmental conditions.
  • Suitability: Ideal for both industrial and commercial applications.
  • Impeller Balance: Statically and dynamically balanced impeller ensures a high Mean Time Between Failures (MTBF) for prolonged service life.
  • Kitchen grease and roof exhaust systems in restaurants, hotels, and commercial kitchens.
  • Industrial settings requiring reliable ventilation solutions.
  • Base: Hot-dipped galvanized for enhanced rigidity and stable operation throughout its lifespan.
  • Impeller: Crafted from high-grade aluminum alloy from the esteemed DUNEpro family, ensuring high volume flow rates and low sound pressure levels (SPL) ideal for commercial settings.
  • Balancing Grade: Statically and dynamically balanced in accordance with ISO 1940, Grade G2.5 standard.
  • Motor: Available in RAV-D (Directly coupled to the motor shaft) and RAV-B (Connected with pulley arrangement) configurations. Features a totally enclosed fan-cooled motor with IP55 protection and Class F insulation, meeting international standards including IEC 60034, IEC 60072, EMC 2004/108/CE, LVD 2006/95/CE, and CE mark.
  • Grease Collector (Optional): Perfectly complement any RAV product with an optional grease trap engineered to trap excess grease, preventing direct drainage onto adjacent surfaces.
  • Exceptional performance, durability, and reliability tailored specifically for commercial environments.
  • Engineered with premium materials and precision craftsmanship to ensure optimal functionality and longevity.
  • Versatile applications, including kitchen grease and roof exhaust systems, making it an ideal choice for a wide range of industries.
