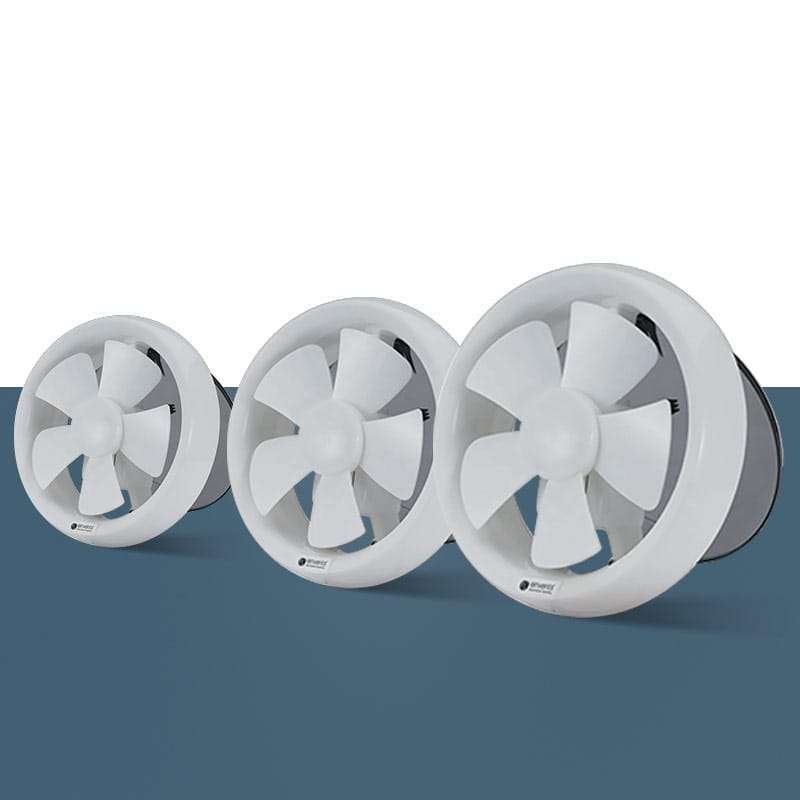

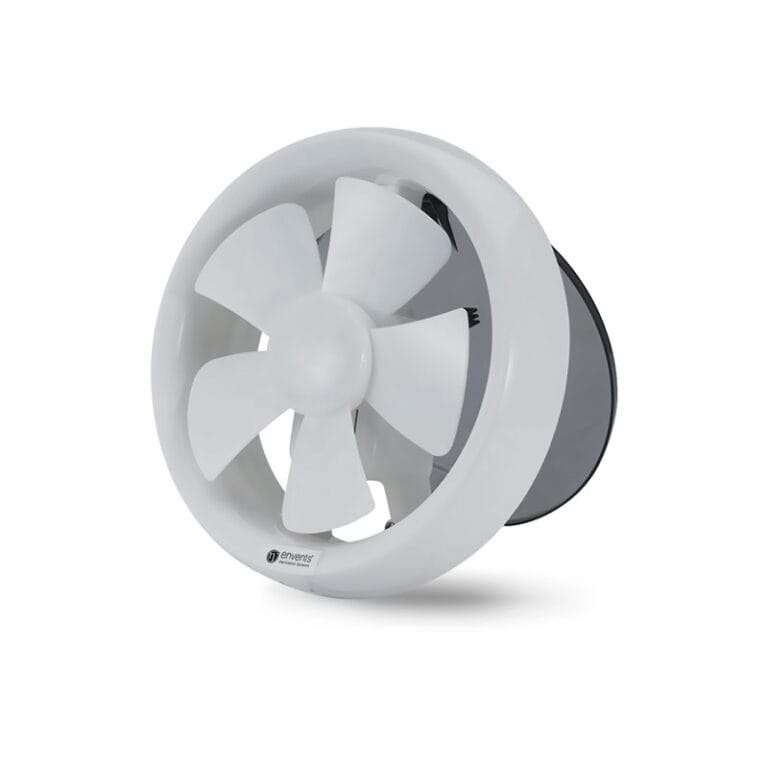

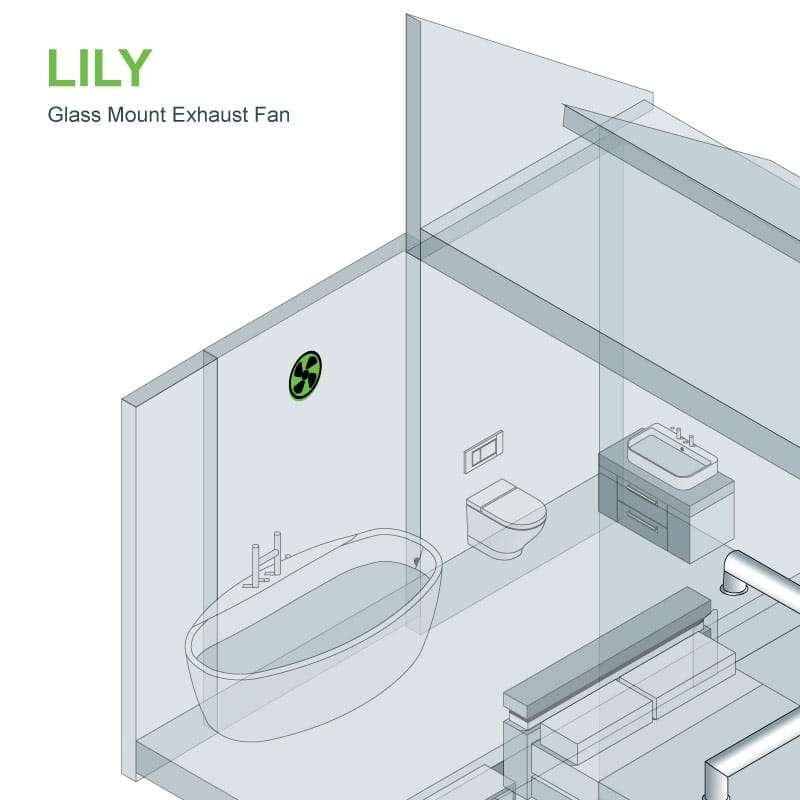

LILY
Glass Mount Exhaust Fan
Smallest Fan Mounting For Windows
Ultra Low Power Consumption Start From 15W
Starts from as low as 84 CMH
Best suited for day to day ventilation needs
Smallest range in envents portfolio, suitable for exhaust application, suitable for 3 to 7mm glass thickness.
- Compact AC External Rotor Motor: Self-lubricated, maintenance-free motor design.
- Maximum Ambient Operation: Capable of operating in environments up to +40ºC.
- Durable Construction: Perfect for indoor applications.
- Sutter Operation: By pull cord.
- Easy Maintenance: Simple fan-motor assembly for maintenance.
- Aerodynamic Design: Direct-driven propeller fan with special blade design.
- Noise Details: As low as 35 dB(A) @ 1.5m.
- Smallest Motor: As low as 12 Watts.
- Standards Compliant: Performance in accordance with AMCA 210 & 300 standards.
- Ideal for small commercial ventilation systems

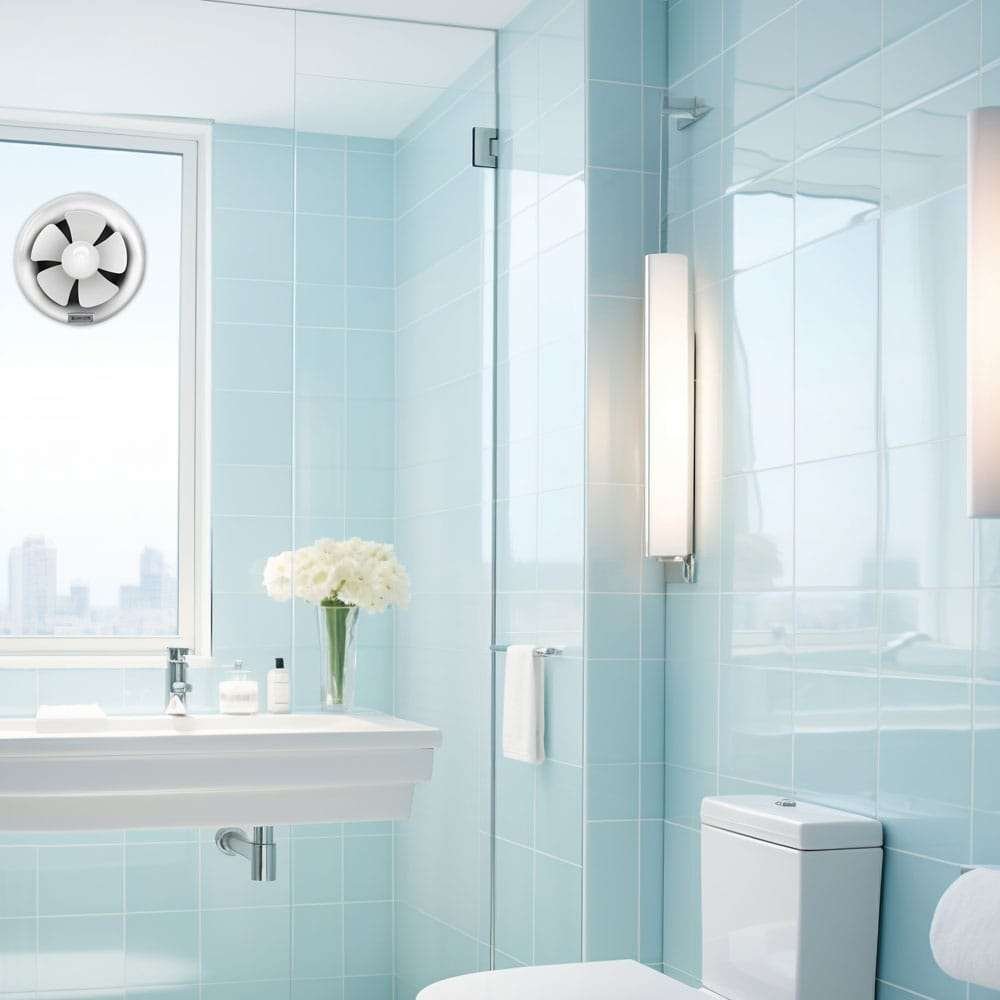

- Small toilets
- Bathrooms
- Environments require lower SPL & watts application
- Design: Efficient aerodynamic direct-driven propelelr fan
- Casing: ABS / PP
- Impeller: Propeller mounted on motor cage, made from ABS/PP.
- Balancing Grade: Statically and dynamically balanced to ISO 1940, Grade G2.5 standard
- Motor: External rotor motor, IPX4 protection, class E insulation
- Temperature Rating: Continuous operation at 40⁰C
- Performance Standards: Compliant with AMCA 210 & 300
Choosing the smallest glass-mounted propeller fan (LILY) ensures you benefit from a compact, high-performance ventilation solution that is easy to install and maintain. Its robust design and easy-to-fit operation capabilities make it a reliable choice for various commercial applications. With compliance to international performance standards, the LILY fan guarantees efficient and quiet operation, enhancing the overall comfort and air quality of your spaces.
