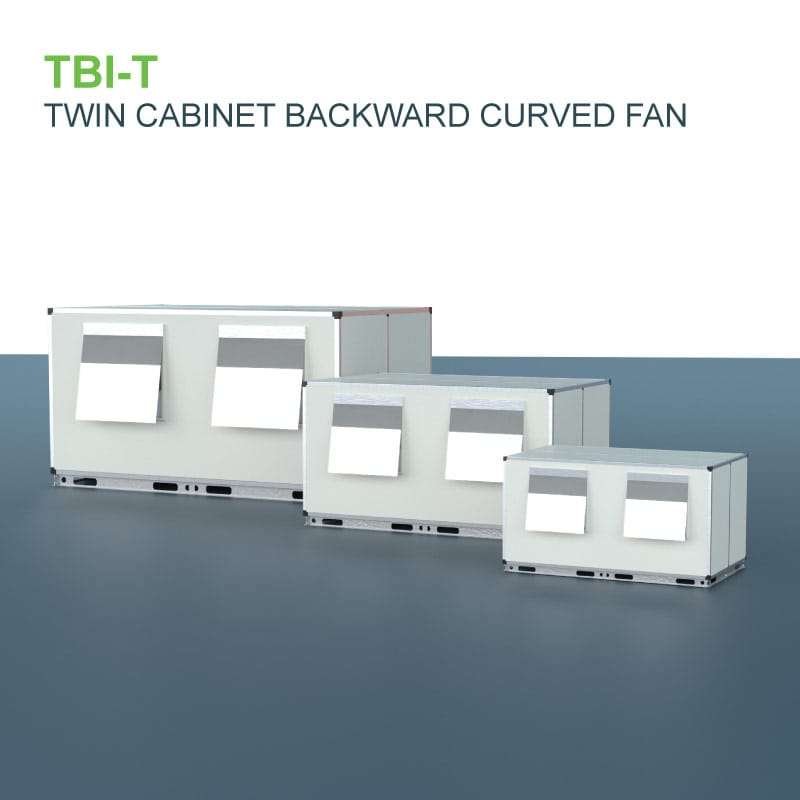

TBI-T

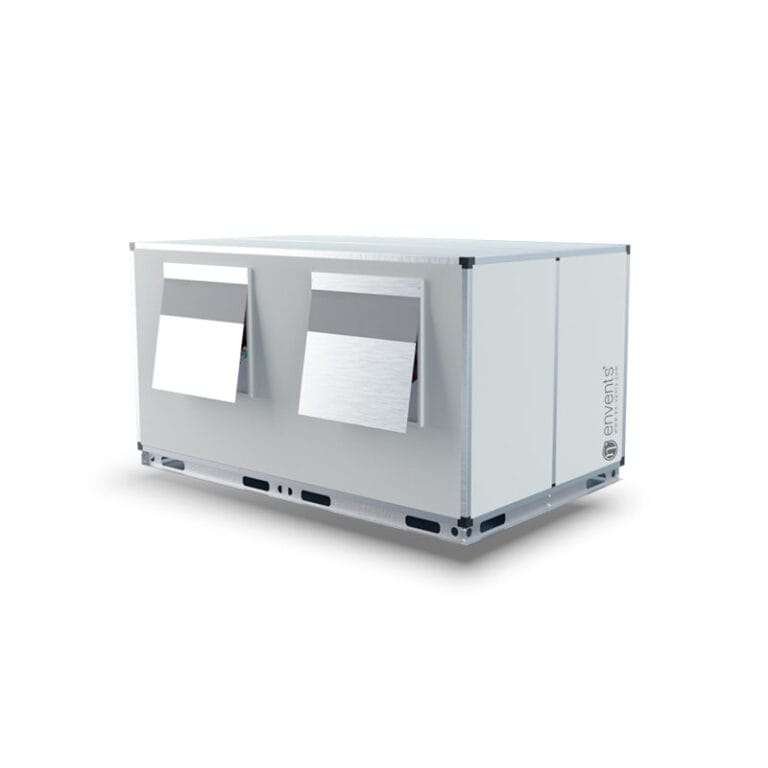

Heavy Duty 24 Hours Duty/Standby Twin Backward Curved Belt Driven Cabinet Fan
Weatherproof PPGI Cabinet for high MTBF Life
Twin Belt Driven Cabinet Fan (TBI-T) is specifically designed for commercial applications, featuring a backward curved design for optimal performance. Its robust construction and high-quality components make it an ideal choice for outdoor use, ensuring reliable operation even in challenging environments.
- Design: Common inlet and outlet with single skin weatherproof construction for outdoor applications, including a gravity shutter at the fan outlet.
- Noise Control: Engineered to handle low background noise with minimal radiated noise.
- Range: Available in capacities ranging from 1000 to 30000 CMH.
- Corrosion Resistance: Made with PPGI construction and a rigid base, with an option for double skin.
- Temperature Resistance: Rated for 50°C ambient environments.
- Installation: Designed for user-friendly installation.
- Controller: Equipped with an IP55 rated, duty-sharing, time-sequence programmed operation with flow sensor integration.
- Motor: Features a totally enclosed fan-cooled motor, IP55 protection with class F insulation (class H available upon request), compliant with international standards (IEC 60034, IEC 60072, EMC 2004/108/CE, LVD 2006/95/CE, CE mark).
- Temperature Rating: Continuous operation at 50⁰C.
- Performance: Complies with AMCA 210 & 300 standards.
- Outdoor Suitability: Can operate in ambient temperatures up to 50°C.
- Durability: Weatherproof PPGI cabinet ensures high mean time between failures (MTBF).
- Auto-Changeover Controller: Includes a pre-programmed IAControl-01AC time sequence for seamless operation.
- Continuous Air Flow: Ensures uninterrupted air flow for critical applications.
- Customization: Available with 25mm double skin and customizable cabinet sizes.
The TBI-T Twin Belt Driven Cabinet Fan is suitable for various commercial applications, including but not limited to:
- HVAC systems
- Industrial ventilation
- Commercial buildings
- Data centers
- Warehouses
- Airflow Range: 1000 to 30000 CMH
- Blower: Backward curved double inlet double width
- Construction Material: PPGI with optional double skin
- Ambient Temperature Rating: Up to 50°C
- Motor Protection: IP55
- Motor Insulation Class: F (Class H upon request)
- Controller Rating: IP55
- Performance Standards: AMCA 210 & 300
- Compliance: IEC 60034, IEC 60072, EMC 2004/108/CE, LVD 2006/95/CE, CE mark
Choosing the TBI-T Twin Belt Driven Cabinet Fan ensures you receive a product that delivers superior performance, durability, and reliability for your commercial applications. With its advanced features and robust construction, the TBI-T is an excellent investment for ensuring efficient and effective ventilation in challenging environments.
